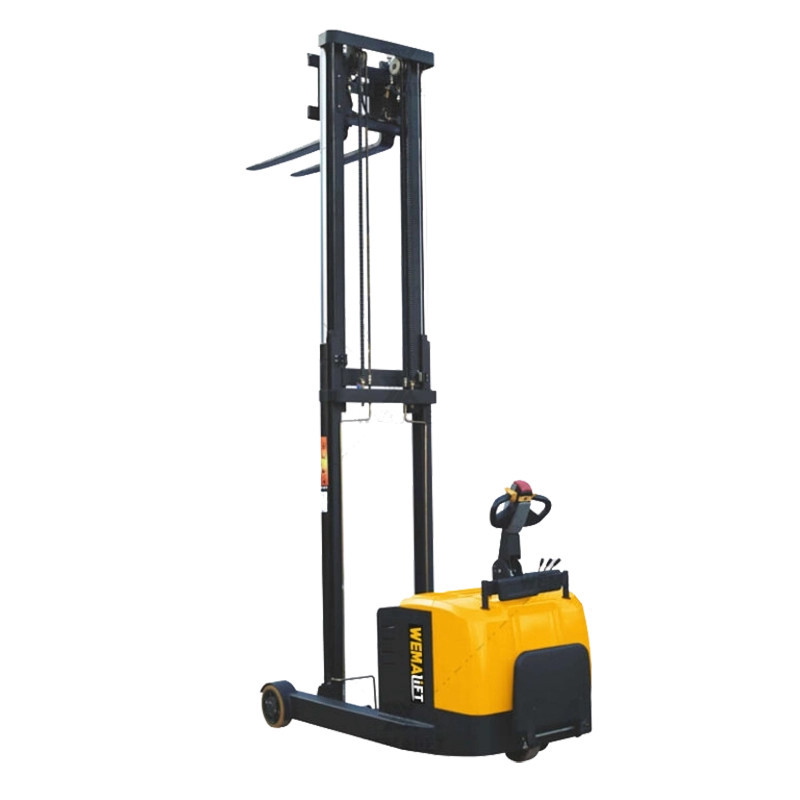

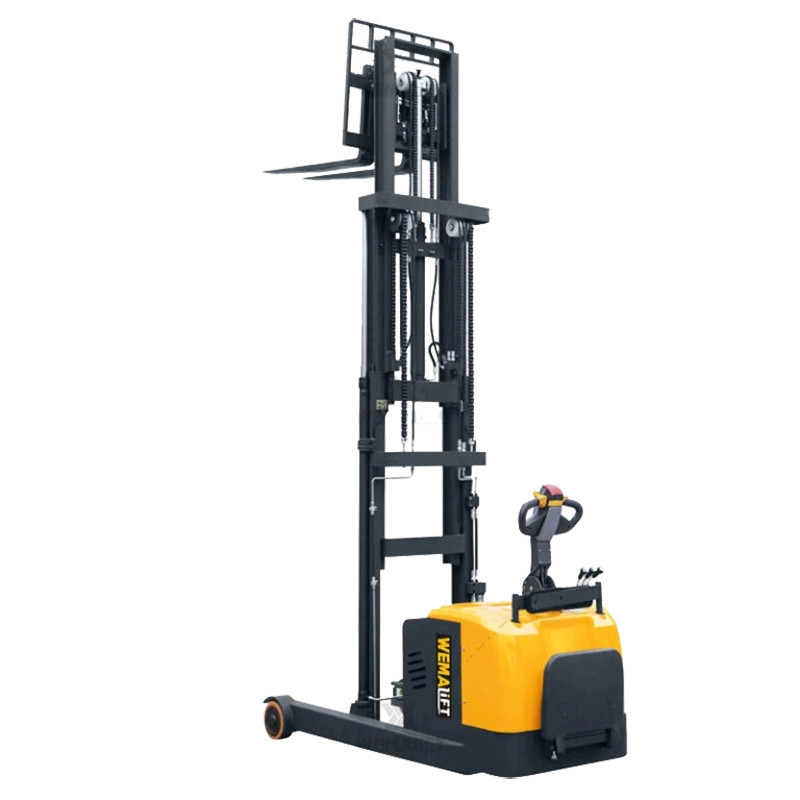

CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (with Side Shift)
Price:
£9,995.00
VAT excluded
CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (with Side Shift)
Full Free Lift
Legless design, small turning radius.
AC drive motor, maintenance free design.
Vertical drive wheel. Electromagnetic brake.
With power steering system (EPS).
CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (with Side Shift)
Full Free Lift
Legless design, small turning radius.
AC drive motor, maintenance free design.
Vertical drive wheel. Electromagnetic brake.
With power steering system (EPS). Safety arm is easy to remove and install.
Product Specifications
| Capacity | 2000Kg |
|---|---|
| Load Centre | 600mm |
| Size of Forks | 1150mm x 100mm x 35mm |
| Min. Fork Height | 100mm |
| Max. Fork Height | 6000mm |
| Lowered Mast Height | 1880mm / 2120mm / 2080mm / 2240mm / 2400mm / 2560mm |
| Extended Mast Height | 3240mm / 3740mm / 5240mm / 5740mm / 6240mm / 6740mm |
| Overall Length | 2480mm / 2630mm |
| Overall Width | 1045mm |
| Ground Clearance | 50mm |
| Turning Radius | 2530mm |
| Lift Motor | 3KW |
| Drive Motor Rated output / DC motor | 2.2KW |
| Reach Distance | 550mm |
| Min Aisle Width (800mm x 1200mm Pallet) | 3550mm /3600mm |
| Battery Voltage / Capacity | 24V / 270Ah |
