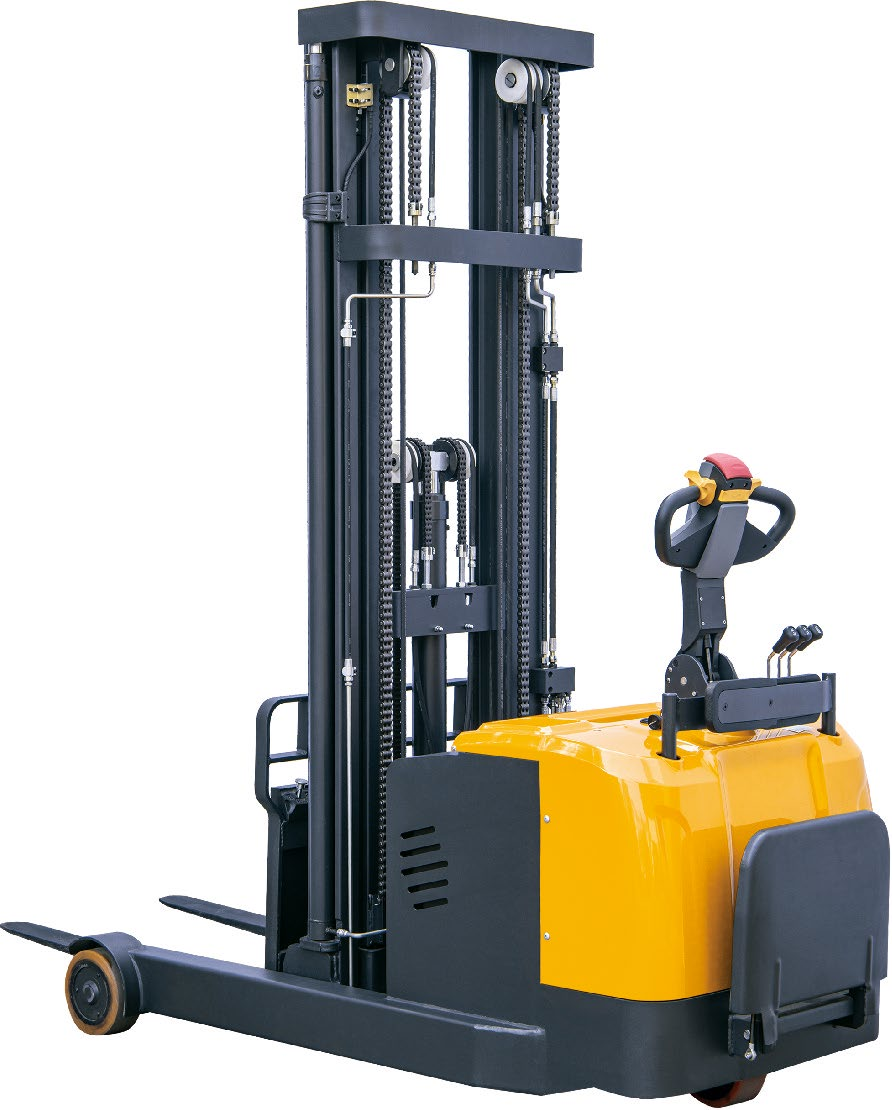

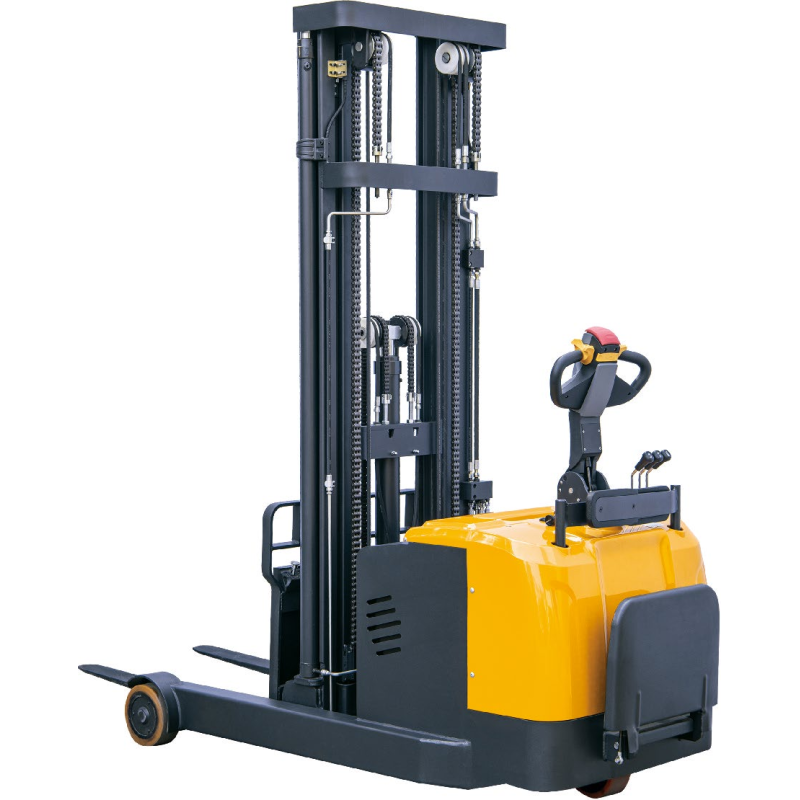

CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (No Side Shift)
Price:
£9,495.00
VAT excluded
CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (No Side Shift)
Small turning radius.
AC drive motor, maintenance free design.
Vertical drive wheel. Electromagnetic brake.
With power steering system (EPS).
CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (No Side Shift)
Small turning radius.
AC drive motor, maintenance free design.
Vertical drive wheel. Electromagnetic brake.
With power steering system (EPS).
Product Specifications
| Capacity | 2000Kg |
|---|---|
| Load Centre | 600mm |
| Size of Forks | 1150mm x 100mm x 35mm |
| Min. Fork Height | 100mm |
| Max. Fork Height | 6000mm |
| Lowered Mast Height | 2560mm |
| Extended Mast Height | 6740mm |
| Overall Length | 2630mm |
| Overall Width | 1045mm |
| Ground Clearance | 50mm |
| Turning Radius | 2530mm |
| Lift Speed (Laden/Unladen) | 0.085/0.122m/s |
| Lift Motor | 3KW |
| Drive Motor Rated output / DC motor | 2.2KW |
| Reach Distance | 550mm |
| Min Aisle Width (800mm x 1200mm Pallet) | 3550mm /3600mm |
| Battery Voltage / Capacity | 24V / 240Ah |
