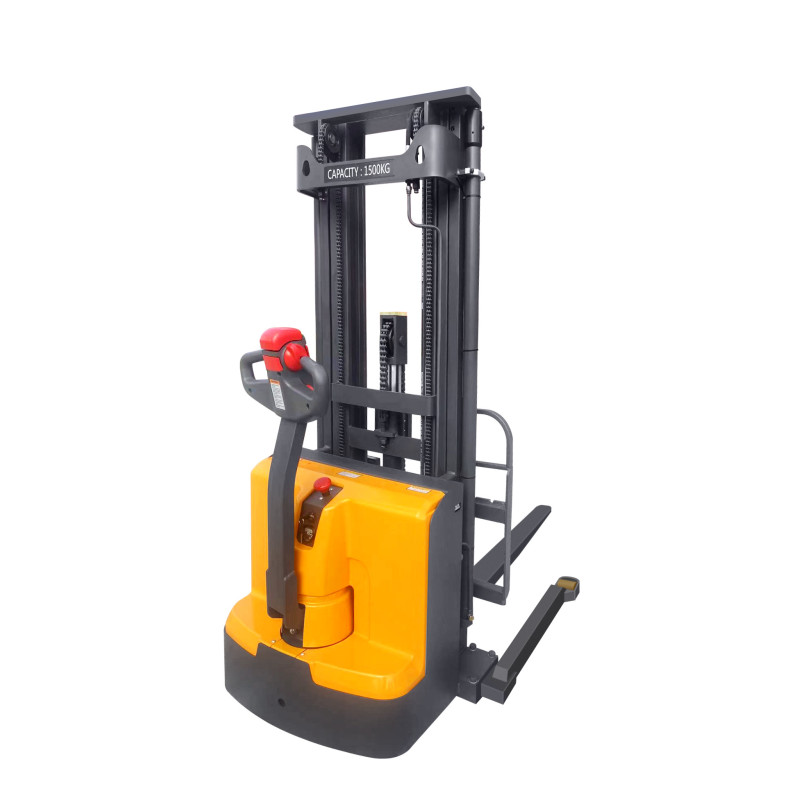

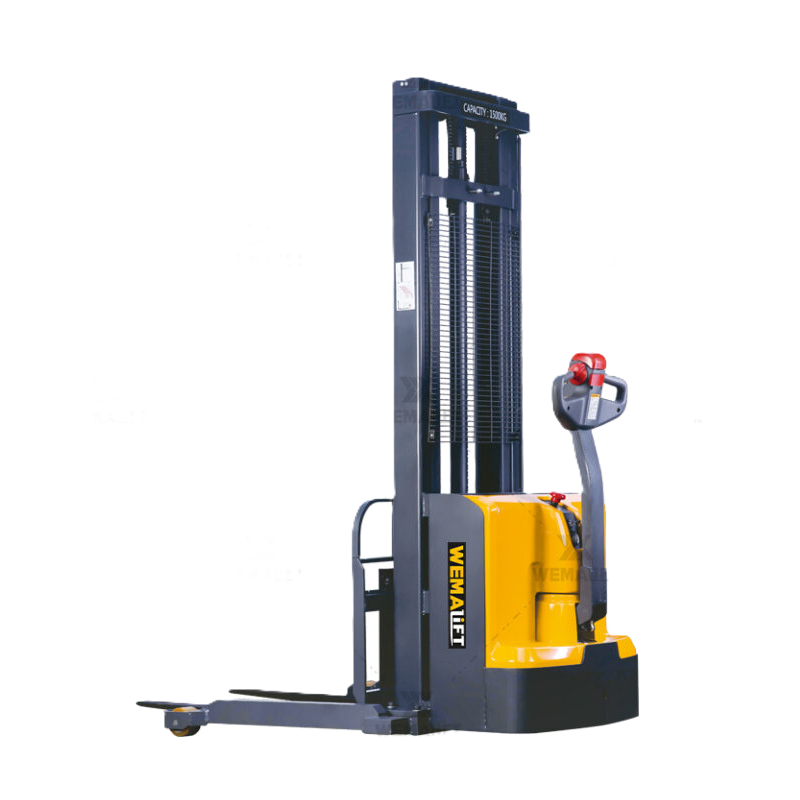

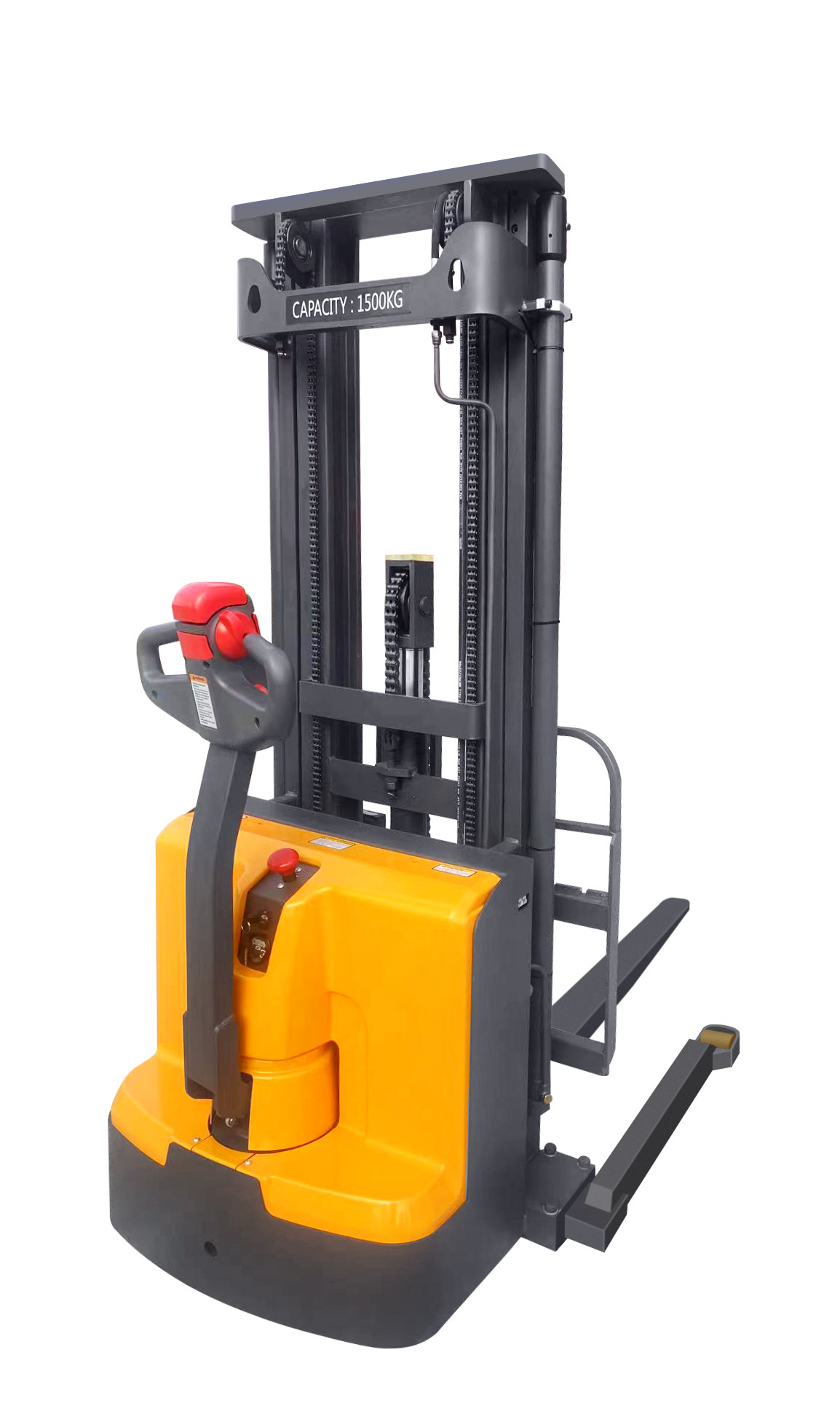

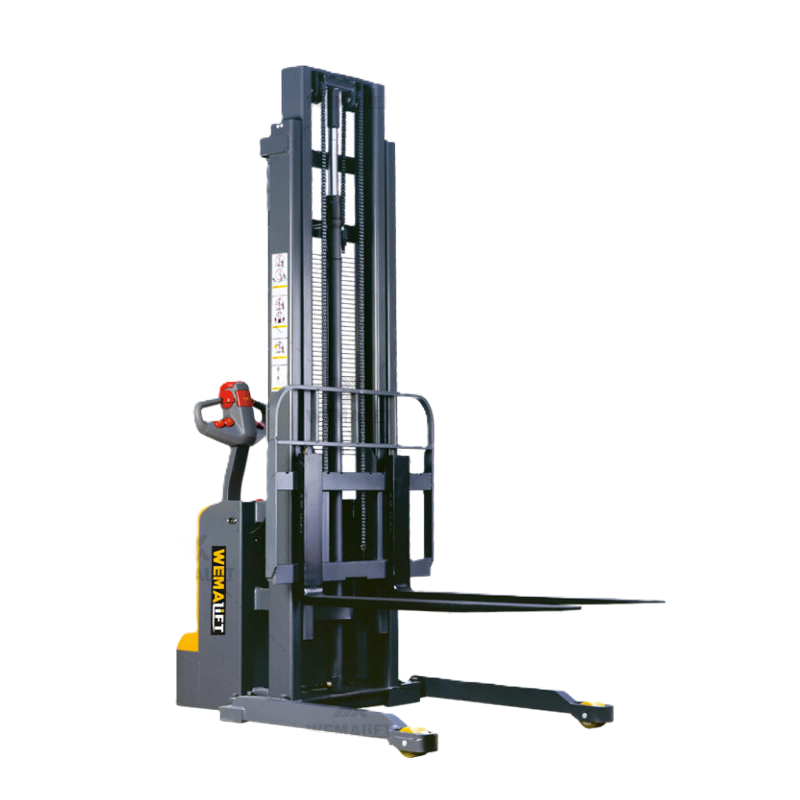

CDDMJ-FFL4548 Powered Straddle Stacker 1200kg 4.5m Lift
Price:
£5,950.00
VAT excluded
CDDMJ-FFL4548 Powered Staddle Stacker 1200kg capacity and a maximum 4.5m lift height.
Must-have accessories
CDDMJ-FFL4548 Powered Straddle Stacker 1200kg capacity and a maximum 4.5m lift height.
Product Specifications
| Capacity | 1200kg |
|---|---|
| Load Centre | 500mm |
| Net Weight | 940kg (with Battery) |
| Min. Fork Height | 90mm |
| Max. Fork Height | 4500mm |
| Extended Mast Height | 5025mm |
| Overall Length | 1900mm |
| Turning Radius | 1460mm |
| Front Wheel Diameter | Ø210 x 70mm |
| Rear Wheel Diameter | Ø80 x 70mm |
| Load Roller Material | Polyurethane |
| Lift Speed (Laden/Unladen) | 0.08 / 0.10 m/s |
| Lowering Speed (Laden/Unladen) | 0.12 / 0.10 m/s |
| Parking Brake | Electromagnetic Brake |
| Min Aisle Width (1000 x 1200 pallet) | 2110mm |
| Min Aisle Width (800mm x 1200mm Pallet) | 2160mm |
| Battery Voltage / Capacity | 24v 85Ah |
