LP7622DW - Wheelie Bin & Drum Keg Weigher 500KG x 200G
Price:
£783.00
VAT excluded

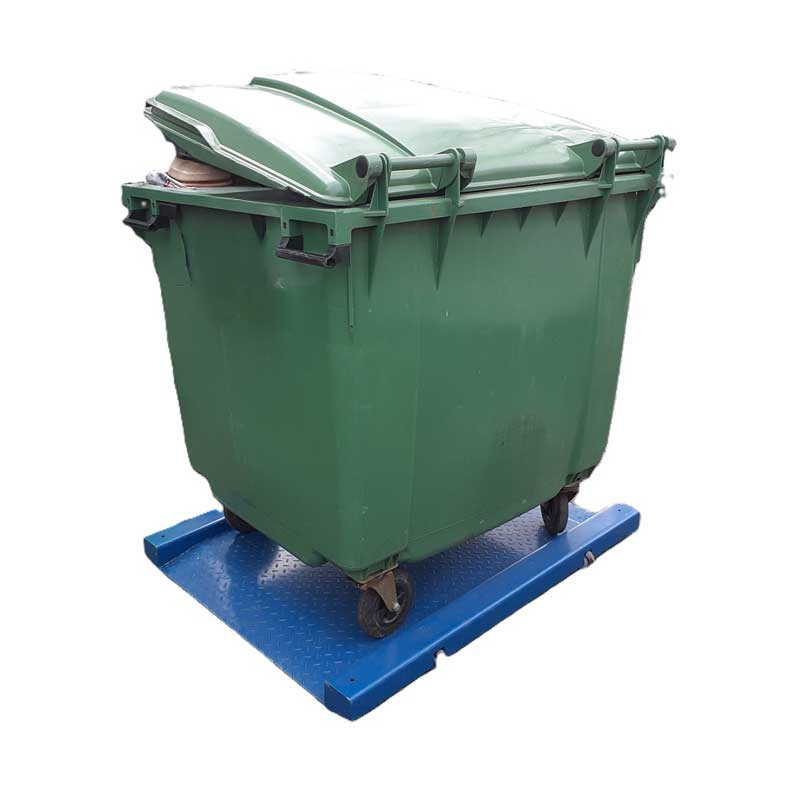

The LP7622DW is a Multi purpose portable floor scale designed for use with Standard Wheelie Bins, up to 1100 litre Industrial Bins, Oil Drums, Barrels & Keg and can also be used as a floor scale with small trolleys.
The scale has a weighing capacity of 500kg x 200g.
The scale dimensions with integral ramps is 1350mm, with the weighing area being 1030mm(L)x830mm(W) and is supplied with 4 quality heavy duty load cells.
Must-have accessories
|
Test Weight Iron Bar (w) 20KG
+£69.00
|
The LP7622DW is a Multi purpose portable floor scales designed for use with Standard Wheelie Bins, up to 1100 litre Industrial Bins, drums, barrels & Keg, which can also be used as a floor scale with small trolleys.
The scale has a weighing capacity of 500kg x 200g.
Total Length of the scale with integral ramps is 1350mm, with the weighing area being 1030mm(L)x830mm(W) and is supplied with 4 quality heavy duty load cells.
The unit is supplied with a mains rechargeable LP7510C weight display indicator as standard and approx 5 metres of cable.
Features include:
Platforms

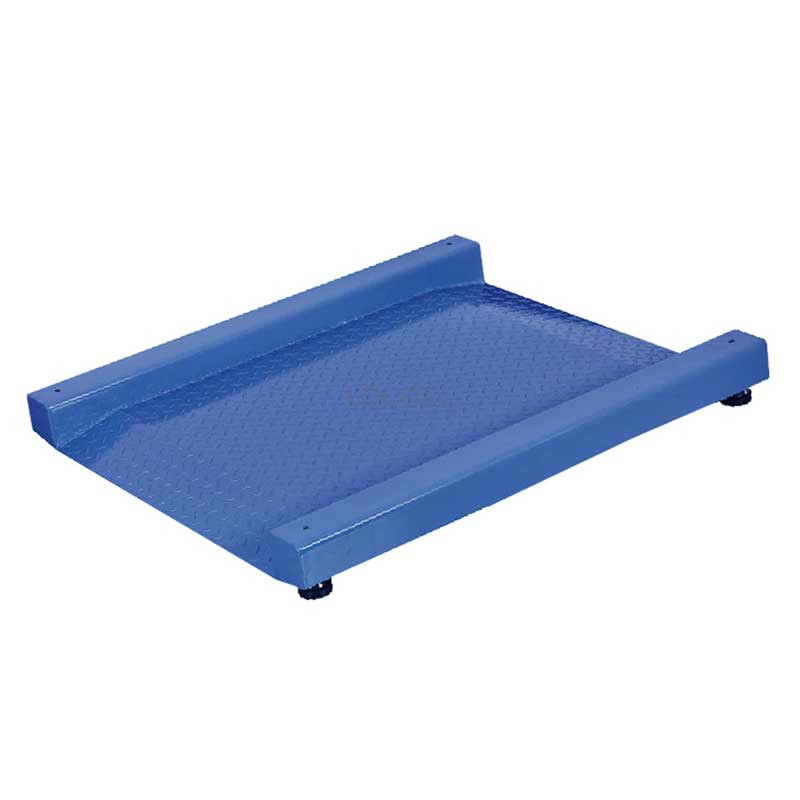

Low Profile Mild Steel Platform Scale.
Platform Colour is a Powder Coat Blue
Dimensions (Weighing Area): 1030mm x830mm
Height (Weighing Area): 50mm
Optional & Upgrade Items
Upgrade: LP7510SS - Stainless Steel Indicator.
Upgrade: LP7510P - Stainless Steel Indicator with Integral Printer.

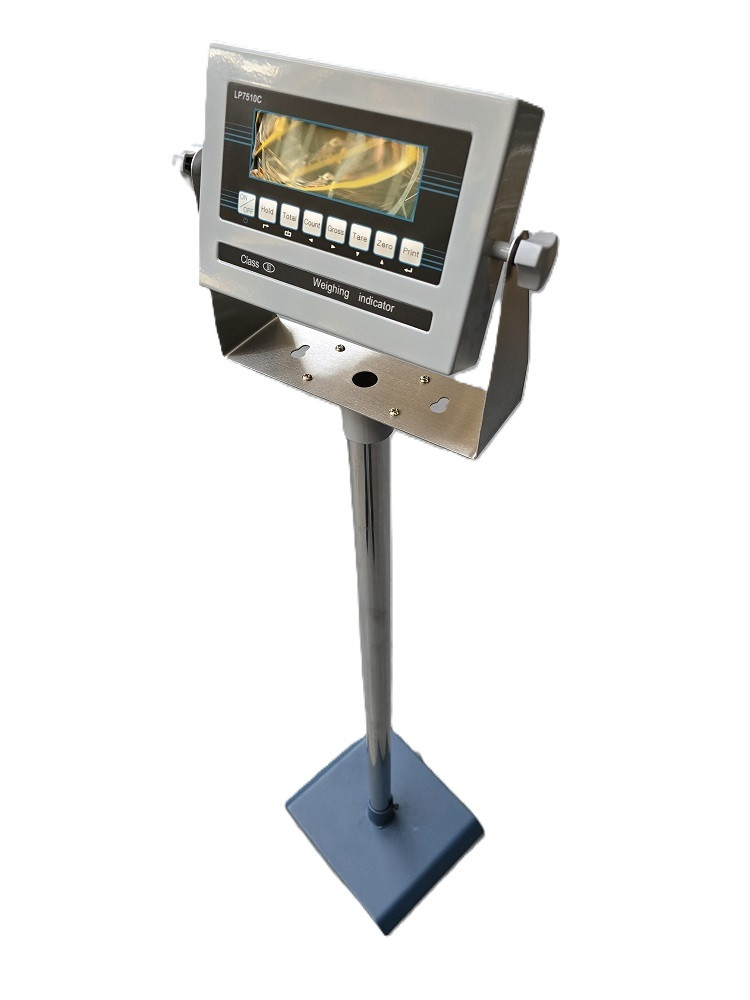

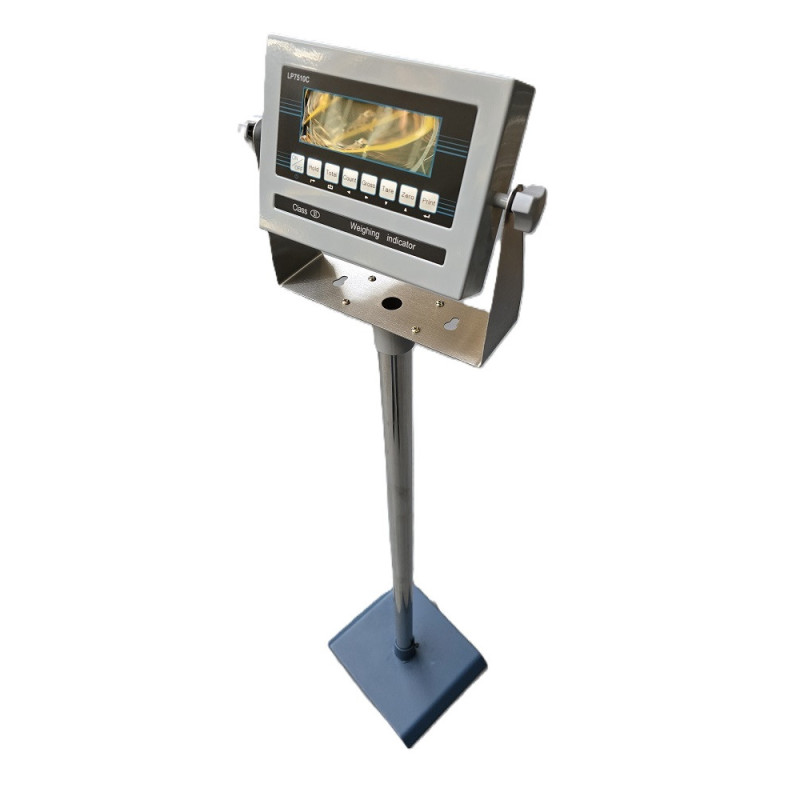

Optional: Weight Indicator Stand 300mm x250mm x 1000mm
Optional: ISO Calibration Certificate.

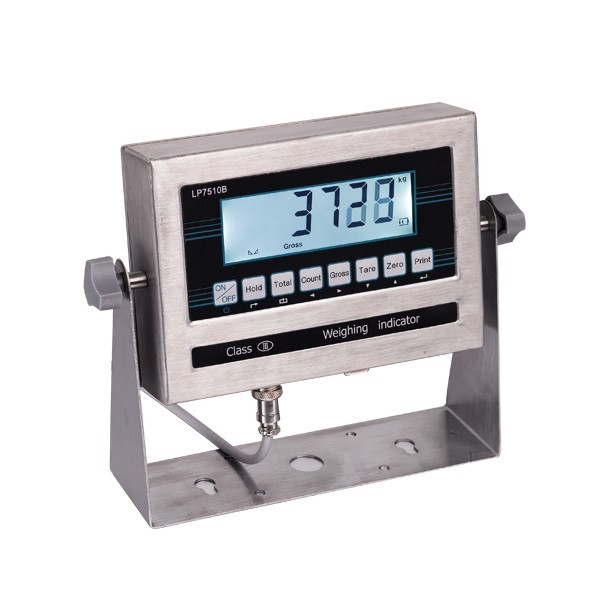

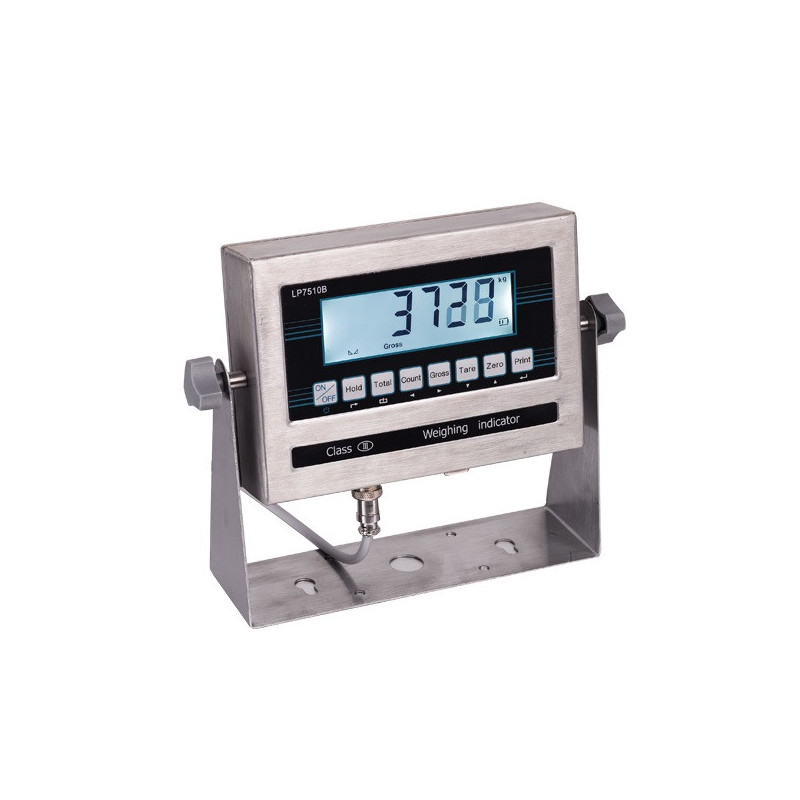

LP7510C, LP7510C-B, LP7501SS & LP7510P Display Units

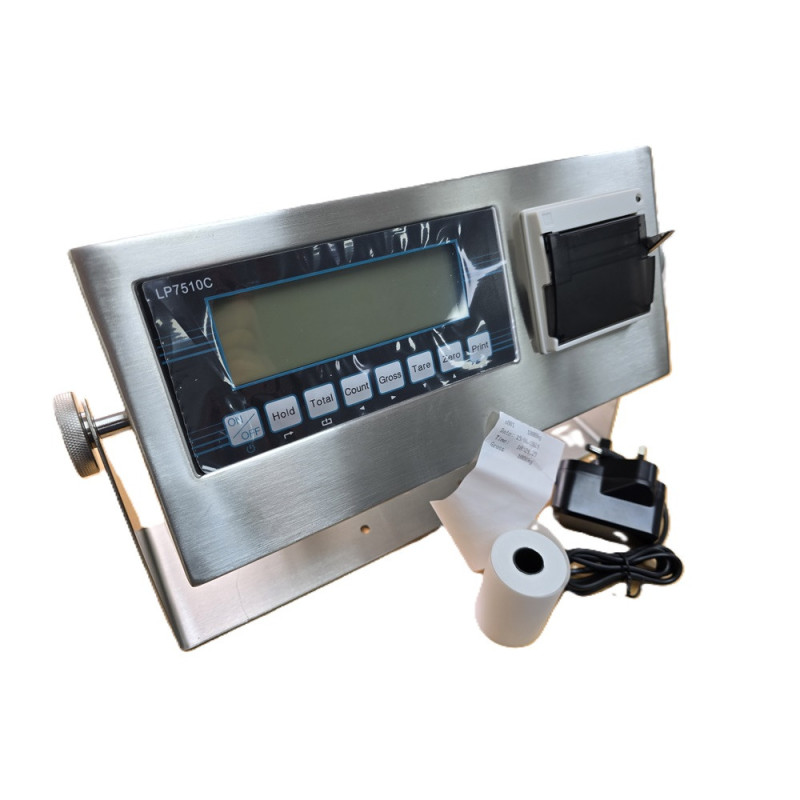

The LP7510C Display Unit is fitted as standard to the weigh beams, but can be upgraded to the LP7510SS S/Steel version or the LP7510P S/Steel with built in thermal receipt printer indicator at the time of order.
Features include:
| Mild Steel or Stainless Steel Housing | Bench / Wall bracket |
| Large 6 Digit 20mm high display | Date & Time |
| Full range Tare | Ratio counting function |
| Load cell sensitivity 1.5 3mV/V | lb/Kg conversion |
| Sample rate: 10 times/second | Load cell sensitivity 1.5 3mV/V |
| Scale interval: 1/2/5/10/20/50 | Large LCD Display |
| Operating Temperature: humidity 0-40°C : 85%RH | RS232 Connection |
| Power supply: Internal 6V rechargeable battery with 9V mains adapter - supplied | Approx. 40 hours of use on a single charge |
| Auto power off function | Gross, Net, Tare, Time & Date print out |
| Display Dimensions: 200mm (W) x 140mm (H) x 80mm (D) | Dimensions with Stand: 226mm (W) x 210mm (H) x 80mm (D) |
| Thermal Receipt printer option for hard copy of the indicator read-out | Optional Weight Indicator Stand with four adjustable feet |
Please note: ISO 9001:2015 certificates are sent out via email and can take 2-3 days to be delivered after receipt of goods.
Pictures are for illustration purposes only.
Product Specifications
| Net Weight | 74kg |
|---|---|
| Weighing Capacity | 500kg x 0.2kg |
| Platform Scale Dims | 1030mm x 830mm |
