Platform Scale LP7620 - 1500mm x 1500mm platform - 1000kg - 5000kg
Price:
£1,223.00
VAT excluded
LP7620 Platform Scale Walkthrough with LP7510C Mild Steel Indicator (Fitted as standard)
Platform Size is 1500mm x 1500mm and Capacities from 1000kg to 5000kg
Must-have accessories
|
Test Weight Iron Bar (w) 20KG
+£69.00
|
Shipping Costs
At checkout you'll define your exact delivery address
Central England
£95.00
England East, North-East, Outer London
£120.00
London
£130.00
England South, South-West, North-West / Wales / Scottish Central Belt
£140.00
Collect from
Milton Keynes
FREE
Pallet Truck Warehouse
"BEST CHOICE PLATFORM WITH RAMP FOR USE WITH PALLET TRUCKS"

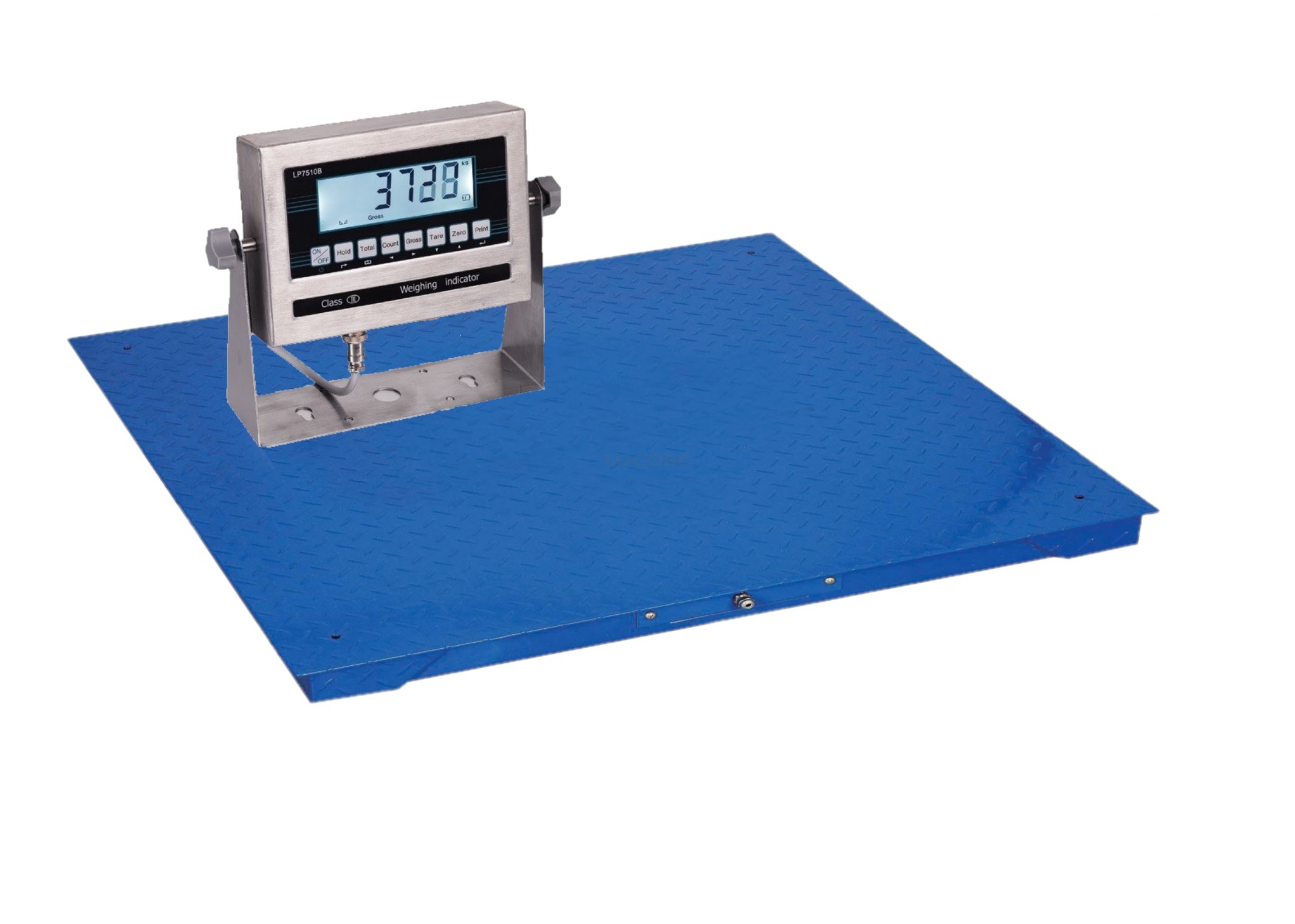

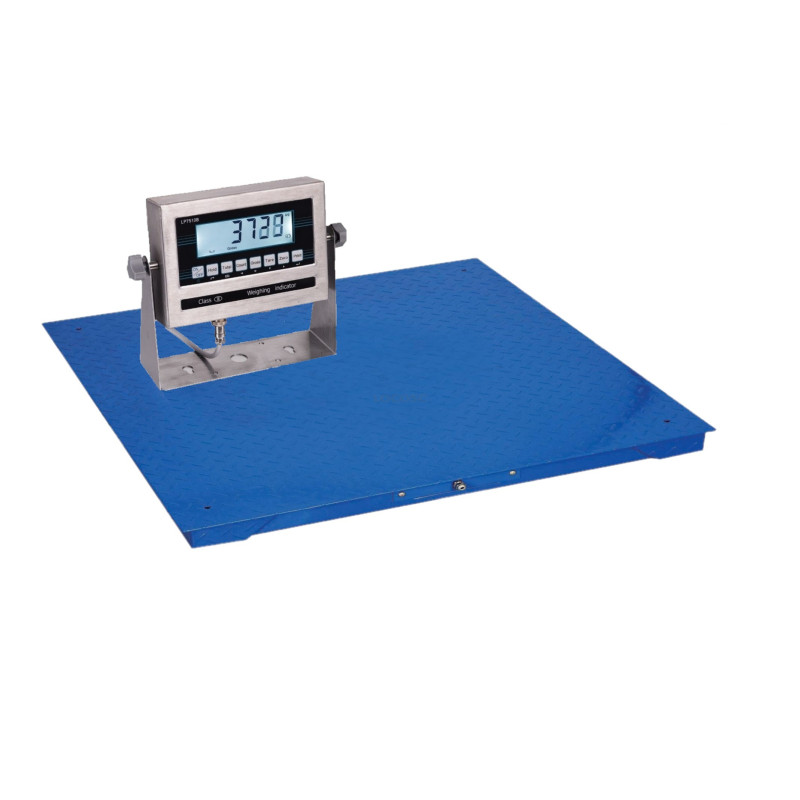

LP7620 Platform Scale with LP7510C Mild Steel Indicator (Fitted as standard)
The LP7510 indicator is the standard indicator that is included with the pallet scale bases, weigh beams and U-frame pallet weighers.
Please contact sales team for a quote if stainless steel is required.
Features include:
Platforms
Mild steel platform scale.
Platform Colour is a Powder Coat Blue
Optional & Upgrade Items
Upgrade: LP7510SS - Stainless Steel Indicator.

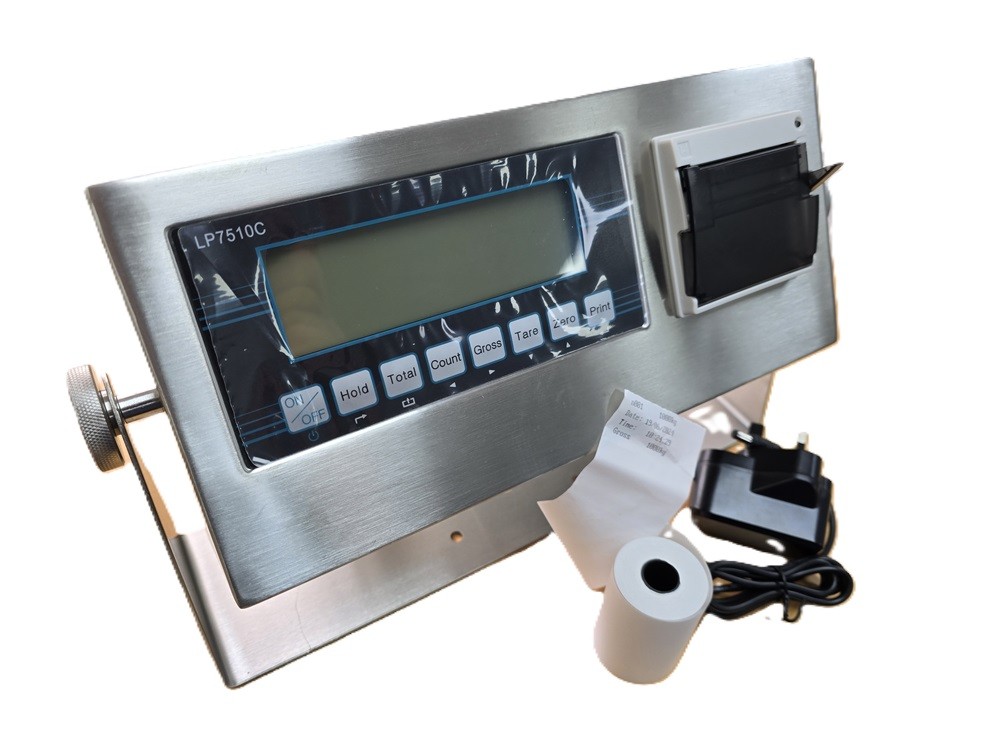

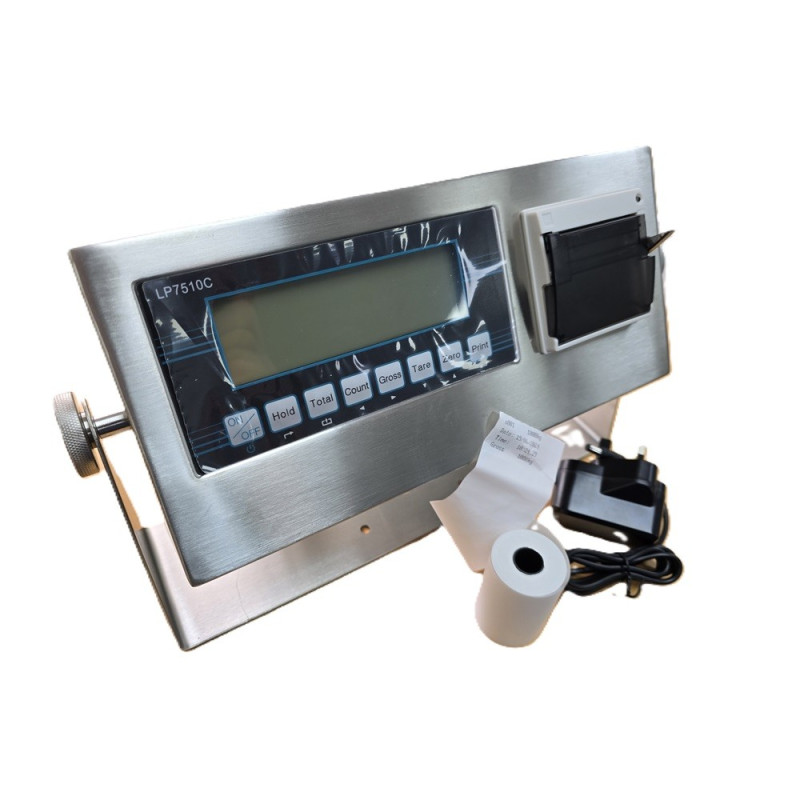

Upgrade: LP7510P - Stainless Steel Indicator with Integral Printer.

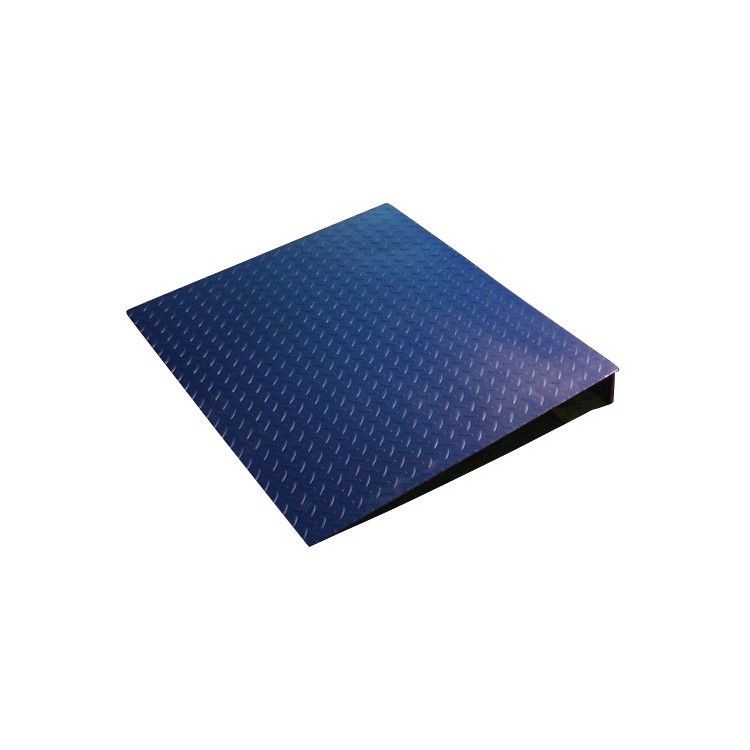

Optional: Ramp-1500 - Mild Steel Platform Ramp 1500mm x 1500mm x 100mm

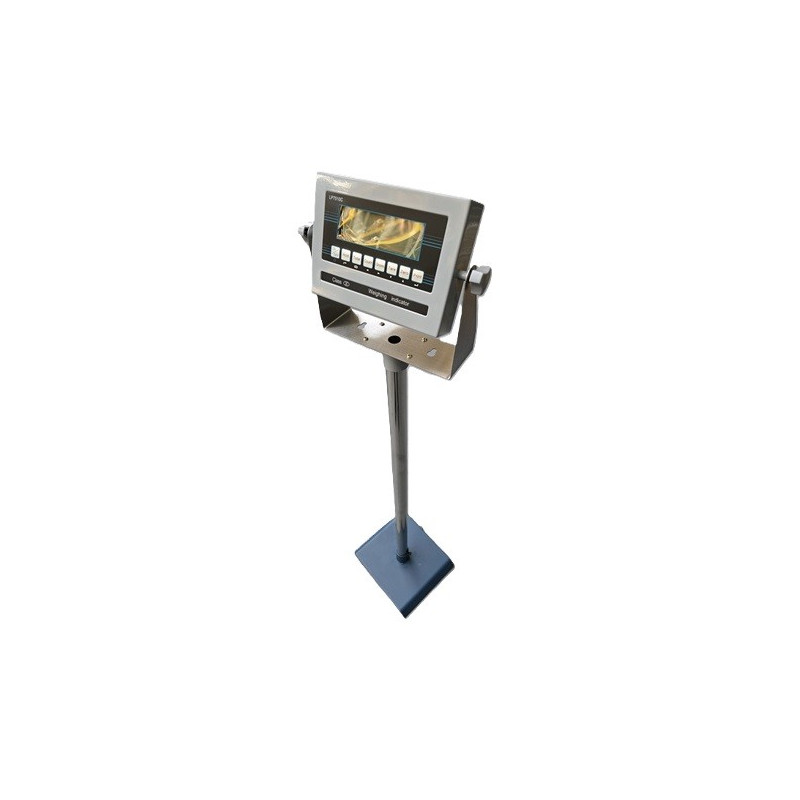

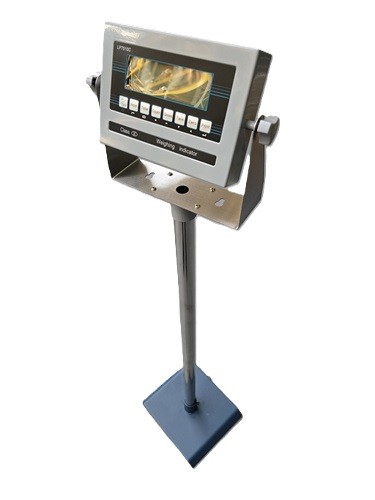

Optional: Weight Indicator Stand 300mm x250mm x 1000mm
Optional: ISO Calibration Certificate.

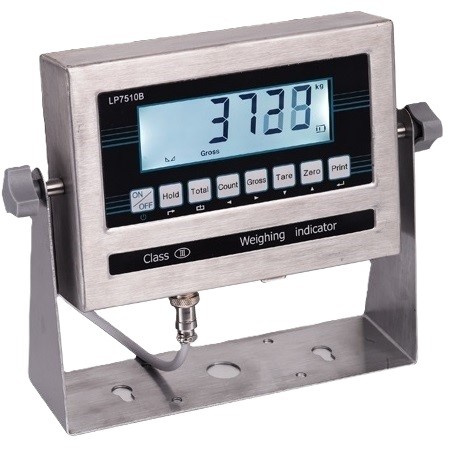

LP7510C, LP7510C-B, LP7501SS & LP7510P Display Units
The LP7510C Display Unit is fitted as standard to the weigh beams, but can be upgraded to the LP7510SS S/Steel version or the LP7510P S/Steel with built in thermal receipt printer indicator at the time of order.
Features include:
| Mild Steel or Stainless Steel Housing | Bench / Wall bracket |
| Large 6 Digit 20mm high display | Date & Time |
| Full range Tare | Ratio counting function |
| Load cell sensitivity 1.5 3mV/V | lb/Kg conversion |
| Sample rate: 10 times/second | Load cell sensitivity 1.5 3mV/V |
| Scale interval: 1/2/5/10/20/50 | Large LCD Display |
| Operating Temperature: humidity 0-40°C : 85%RH | RS232 Connection |
| Power supply: Internal 6V rechargeable battery with 9V mains adapter - supplied | Approx. 40 hours of use on a single charge |
| Auto power off function | Gross, Net, Tare, Time & Date print out |
| Display Dimensions: 200mm (W) x 140mm (H) x 80mm (D) | Dimensions with Stand: 226mm (W) x 210mm (H) x 80mm (D) |
| Thermal Receipt printer option for hard copy of the indicator read-out | Optional Weight Indicator Stand with four adjustable feet |
Please note: ISO 9001:2015 certificates are sent out via email and can take 2-3 days to be delivered after receipt of goods.
Pictures are for illustration purposes only.
Product Specifications
| Min Platform Height | 100mm |
|---|---|
| Weighing Capacity | 1000kg x 0.2kg 2000kg x 0.5kg 3000kg x 1kg 5000kg x 2kg |
| Platform Scale Dims | 1500mm x 1500mm |
